SENSOR BLACK MATT Basin mixer SLU21CMAT
Brand: RAV Slezák

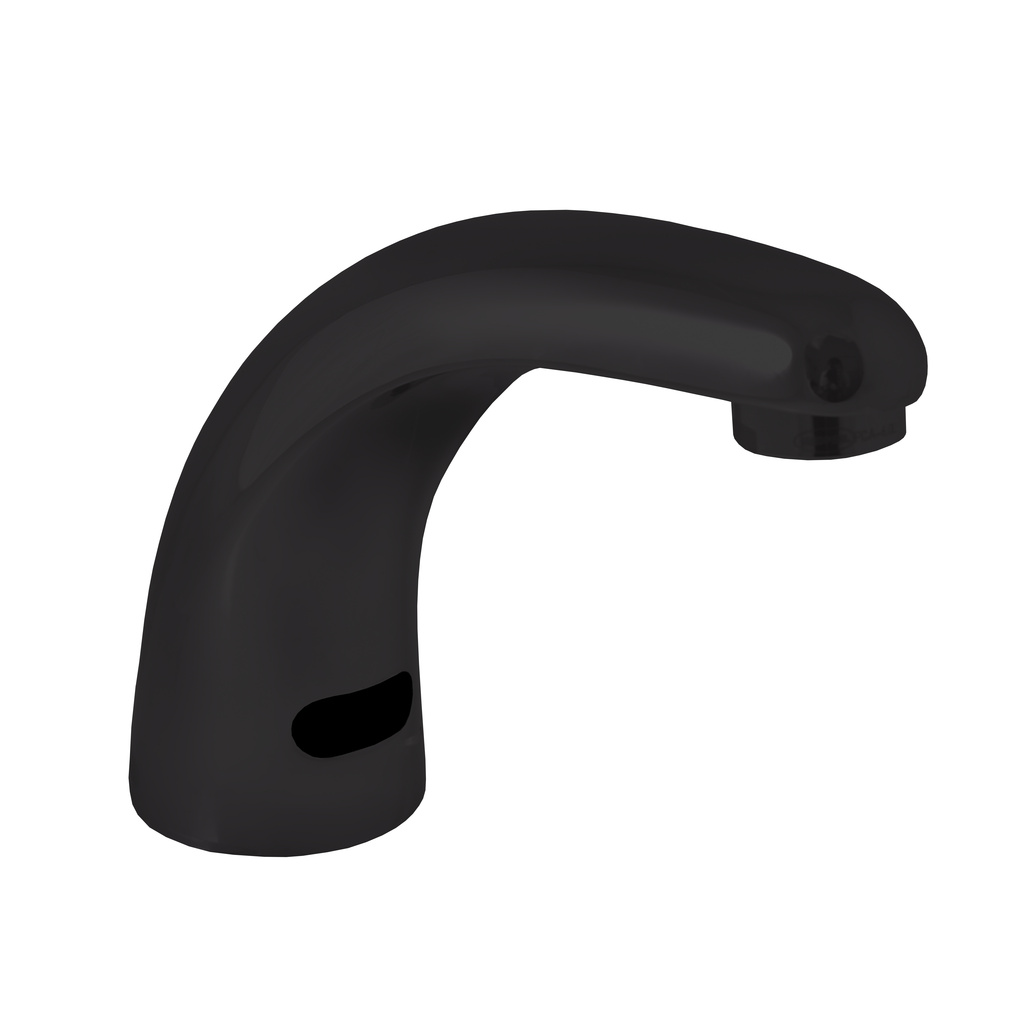

Basin mixer SENSOR BLACK MATT
- economic aerator, flow rate 6 l/min
- gygienic flushing
- safety function of turning off the water after 5 minutes
- reacts to the presence of hands in the sensing zone up to a distance of 0.3 m from the sensor by immediately starting
- the water is turned off after removing the hands or after the set time has elapsed (can be set in the range of 0.25 - 7.75 s)
- SLU 21CMAT is designed for single-pipe supply of cold or heat-treated water
- option to switch to mode START/STOP
- parameter setting using the SLD 03 remote control
- material: chrome
- temperature regulation: single-pipe water supply
- power supply: 24V DC
- control: infrared
- coverage: standard 0.13 - 0.19 m, in START/STOP mode 0.05 - 0.15 m
- recommended working pressure: 0.1 - 0.6 MPa
- flow rate: 6 l/min. (inf. data)
- water inlet: external thread G 1/2"
- supply voltage: 24 V DC
The dimensions indicated in the drawing are for informational purposes only. The actual dimensions of the products may differ from those indicated in the drawing! Check with the manufacturer!
